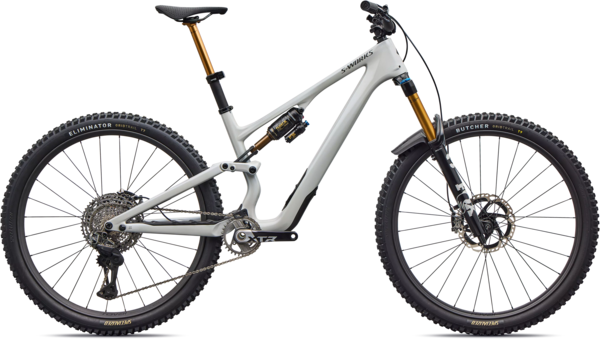

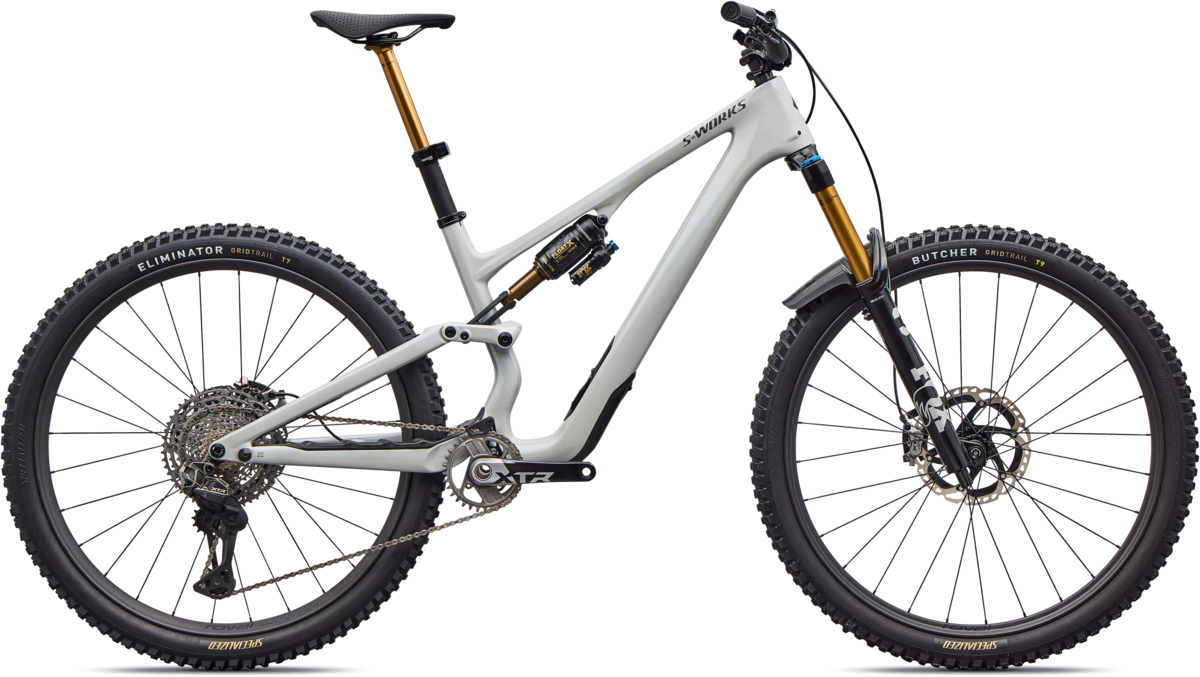

Specialized S-Works Stumpjumper 15 EVO Di2

Specialized S-Works Stumpjumper 15 EVO Di2
  • Color: Gloss Dolomite Metallic / Smoked Liquid Metal
  • Color: Gloss Solidity / Bordeaux / Brushed Chrome
$11,300.00
Color:
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable
Order now and pick up in-store for free

Details

The all-new Stumpjumper 15 EVO obliterates every trade-off in the trail game. It’s the ‘Bike of the Year’ winning Stumpy 15 you know, turned up to 11—with a longer-travel 160mm FOX fork, external reservoir FOX FLOAT X shock, and a slacker headtube for next-level capability. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. A heaping helping of personalization to make it perfect for the only rider who matters—you? Check, check, check.

Wheel size:
Sizes S1 - S2: 29-inch front / 27-inch rear
Sizes S3 - S6: 29-inch

Frame SizeS1S2S3S4S5S6
Crank Length (mm/in) 165 / 6.50 165 / 6.50 165 / 6.50 170 / 6.69 170 / 6.69 170 / 6.69
Handlebar Width (mm/in) 780 / 30.71 780 / 30.71 800 / 31.50 800 / 31.50 800 / 31.50 800 / 31.50
Stem Length (mm/in) 40 / 1.57 40 / 1.57 40 / 1.57 40 / 1.57 40 / 1.57 40 / 1.57
Saddle Width (mm/in) 155 / 6.10 155 / 6.10 143 / 5.63 143 / 5.63 143 / 5.63 143 / 5.63
Seatpost Length (mm/in) 125 / 4.92 150 / 5.91 175 / 6.89 200 / 7.87 200 / 7.87 225 / 8.86
Stack (mm/in) 611 / 24.06 621 / 24.45 630 / 24.80 644 / 25.35 658 / 25.91 671 / 26.42
Reach (mm/in) 400 / 15.75 420 / 16.54 445 / 17.52 470 / 18.50 495 / 19.49 525 / 20.67
Head-Tube Length (mm/in) 95 / 3.74 100 / 3.94 110 / 4.33 125 / 4.92 140 / 5.51 155 / 6.10
Head-Tube Angle (degrees) 64° 64° 64° 64° 64° 64°
B-B Height (mm/in) 337 / 13.27 340 / 13.39 340 / 13.39 340 / 13.39 340 / 13.39 340 / 13.39
B-B Drop (mm/in) 38 / 1.50 35 / 1.38 35 / 1.38 35 / 1.38 35 / 1.38 35 / 1.38
Trail (mm/in) 133 / 5.24 134 / 5.28 134 / 5.28 134 / 5.28 134 / 5.28 134 / 5.28
Fork Length, Full (mm/in) 561 / 22.09 573 / 22.56 573 / 22.56 573 / 22.56 573 / 22.56 573 / 22.56
Fork Rake/Offset (mm/in) 44 / 1.73 44 / 1.73 44 / 1.73 44 / 1.73 44 / 1.73 44 / 1.73
Front-Center (mm/in) 724 / 28.50 755 / 29.72 785 / 30.91 816 / 32.13 848 / 33.39 884 / 34.80
Chain-Stay Length (mm/in) 430 / 16.93 432 / 17.01 435 / 17.13 435 / 17.13 445 / 17.52 445 / 17.52
Wheelbase (mm/in) 1153 / 45.39 1186 / 46.69 1217 / 47.91 1249 / 49.17 1290 / 50.79 1327 / 52.24
Top Tube Length, Horizontal (mm/in) 542 / 21.34 574 / 22.60 596 / 23.46 625 / 24.61 649 / 25.55 678 / 26.69
Bike Stand-Over Height (mm/in) 738 / 29.06 751 / 29.57 745 / 29.33 745 / 29.33 745 / 29.33 751 / 29.57
Seat-Tube Length (mm/in) 385 / 15.16 385 / 15.16 405 / 15.94 425 / 16.73 445 / 17.52 465 / 18.31
Seat-Tube Angle (degrees) 77.7° 76.5° 76.5° 76° 76° 76°
Saddle Height for Effective ST Angle (mm/in) 825 / 32.48 870 / 34.25 645 / 25.39 690 / 27.17 735 / 28.94 780 / 30.71
Max Seatpost Insertion (mm/in) 245 / 9.65 245 / 9.65 255 / 10.04 255 / 10.04 285 / 11.22 285 / 11.22
Min Seatpost Insertion (mm/in) 80 / 3.15 80 / 3.15 80 / 3.15 80 / 3.15 80 / 3.15 80 / 3.15

Specs

Frame FACT 11m carbon chassis, rear-end and link, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
Fork FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm Kabolt axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel
Rear Shock FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm
Wheels Front: Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra Hub, 15x110mm, 28h, DT Swiss Revolite Spokes Rear: Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, Industry 9 Hydra Hub, 15x110mm, 28h, DT Swiss Revolite Spokes
Tires Front: Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4 Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
Bottom Bracket Shimano BB93
Crankset Shimano XTR, 55mm chainline, 32T, S1-S3: 165mm, S4-S6: 170mm
Shifters Shimano XTR Di2
Rear Derailleur Shimano XTR Di2, 12-speed
Cassette/Freewheel Shimano XTR, 12 Speed, 10-51T
Chain Shimano XTR, 12-speed w/ quick link
Brakes Shimano XTR, 4-piston caliper, hydraulic disc
Handlebars RaceFace ERA Carbon, 5-degree upsweep, 8-degree backsweep. S1-S2: 800 width, 20mm rise: S3-S6: 800 width, 55mm rise
Tape/Grips Deity Lockjaw Grips
Stem Race Face Turbine R,35mm clamp,40mm length
Seatpost FOX Transfer NEO Factory, 34.9, S1:125mm, S2: 150mm, S3: 175mm, S4-S6: 200mm
Saddle Specialized S-Works Power Mirror, Ti Rails, S1-S2: 155mm, S3-S6:143mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Dolomite Metallic / Smoked Liquid Metal / S1 / 29-inch front / 27-inch rear 196625234118 93326-0001
Gloss Dolomite Metallic / Smoked Liquid Metal / S2 / 29-inch front / 27-inch rear 196625234088 93326-0002
Gloss Dolomite Metallic / Smoked Liquid Metal / S3 / 29-inch 196625234101 93326-0003
Gloss Dolomite Metallic / Smoked Liquid Metal / S4 / 29-inch 196625234125 93326-0004
Gloss Dolomite Metallic / Smoked Liquid Metal / S6 / 29-inch 196625234095 93326-0006
Gloss Solidity / Bordeaux / Brushed Chrome / S2 / 29-inch 196625251191 93326-0102
Gloss Solidity / Bordeaux / Brushed Chrome / S4 / 29-inch 196625251214 93326-0104
Gloss Solidity / Bordeaux / Brushed Chrome / S5 / 29-inch 196625251238 93326-0105
Gloss Solidity / Bordeaux / Brushed Chrome / S6 / 29-inch 196625251207 93326-0106
